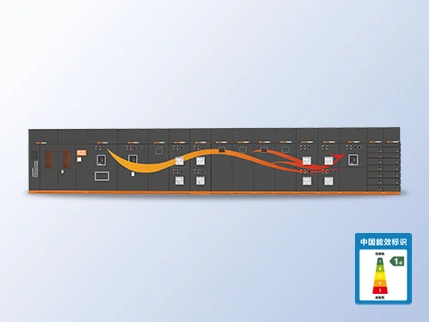

DianLiang Bifang IDC Smart Integrated Power Module
The IDC intelligent integrated power module combines a Level 1 energy-efficiency amorphous alloy transformer, power distribution modules, and intelligent terminals in one unit. Its centralized design reduces line losses and construction costs, and it supports modular combination, prefabricated delivery, and visualized O&M, shortening project construction schedules.
Product Introduction
Key Specifications
Transformer input
10kv AC 50/60Hz
Transformer capacity
1.25MVA- 2.5MVA
Feeder cabinet switching capacity
630A、 400A、 250A、 160A、 100A
Low Voltage Cabinet
Fixed Separation/Draw-Out Type
Full cabinet dimensions
Customizable
Operating temperature
-5~40℃
Applications
Data Center
Power supply and distribution for computing parks, focusing on low line loss, modularity, and fast delivery
Campus energy
Energy centers in large industrial parks, emphasizing integration and visualized O&M
Smart upgrade
New construction or retrofit projects, focusing on construction schedule and expandability
Product Overview
- Transformer: Grade 1 energy-efficiency amorphous alloy transformer with semi-encapsulated three-phase three-limb patented technology, significantly reducing no-load loss
- Incoming cabinet: controls the on/off of the total energy input from the transformer low voltage side to the low voltage distribution cabinet
- Bus tie cabinet: connects two main busbars with make-break control
- SVG/APF: reactive power/harmonic compensation that enhances system stability and efficiency and improves power factor
- UPS: supports systems built from modular and tower UPS units
- Maintenance bypass cabinet: transfers the load to a backup path during scheduled UPS maintenance or UPS failure
Product Features
Space saving
With high-density integrated design, the intelligent integrated power supply system saves about 50% of space, adapting to space-constrained applications.
Cost reduction
This design also optimizes energy flow and cuts energy loss by about 30%, further improving economic benefits.
Energy savings
Equipped with a Grade 1 energy efficiency amorphous transformer, the system saves approximately 11,000 kWh annually (based on 2500kVA).
Improved reliability
The modular design supports hot swapping, allowing online maintenance without shutdown and reducing operation and maintenance downtime. The centralized bypass design improves system reliability and ensures a stable power supply.
Rapid deployment
Factory prefabrication and pre-assembly, ready to connect on site, shortening delivery cycles.
Hassle-free O&M
Centralized monitoring with alarm linkage for rapid fault location and higher maintenance efficiency.
Standards and certifications
GB/T 19939-2005
Power Transformer Technical Requirements
GB/T 18655-2010
General Technical Requirements for Power System Automation Devices
IEC 62040 Series
Uninterruptible power supply system (UPS)
ISO 50001:2018
Energy management system
UL 60950-1
Safety Requirements for Information Technology Equipment
Technical Advantages
Smart terminal
Integrated sensing and communication device for simple installation with less wiring
Customer dashboard
Centralized, visualized and intelligent management center for transformers
AI Safe Operation Model
Big data analytics detect risk points early and predict faults
