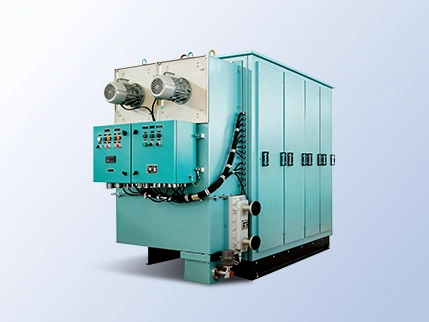

Marine Dry-Type Transformer
The dry-type structure and highly reliable casting process provide moisture, salt-spray, and mold resistance along with excellent vibration resistance; low partial discharge levels meet the requirements of long-term marine operation and classification societies.
Product Introduction
Key Specifications
Temperature
-25℃ ~ 45℃
Humidity
Relative Humidity ≤95%
Vibration and shock
Capable of normal operation under vibration and shock
Rolling angle
≤22.5°
Tilt angle
≤15°
Applications
Marine power distribution
Cargo ships, tankers, cruise ships and more, focusing on vibration resistance and reliable insulation
Port shore power
Shore power systems for docks; emphasis on stable power supply and low partial discharge
Offshore engineering equipment
Supporting equipment for offshore work platforms, with focus on moisture and mold resistance
Product Overview
- Premium high-permeability silicon steel processed through multi-step stepped lamination achieves lower no-load loss and improved energy efficiency.
- Pioneering use of the Nomex paper insulation system, designed specifically for marine and offshore platform transformers, delivering excellent insulation performance and reliability.
- Two advanced processes are available for active part manufacturing: VPI vacuum impregnation or epoxy resin vacuum casting, meeting different environmental and performance requirements.
- All fasteners and exposed conductive parts receive special protective treatment, fully meeting stringent environmental requirements for moisture, salt fog, and mold resistance.
- A uniquely designed enclosure with integrated water channels offers a protection rating of up to IP44, ensuring safe operation in harsh environments.
- A hybrid cooling system combining air and water cooling delivers excellent heat dissipation and strong overload adaptability.
Product Features
Modular cabinet design
The cabinet features a modular design that can be disassembled and reassembled, making installation simple and fast.
Noise reduction
Through-core bolt structure effectively reduces operating noise with significant noise reduction.
Special process
Coils undergo multiple dip-varnish treatments for enhanced three-proof performance against moisture, corrosion, and mold.
45° Cold-Rolled Silicon Steel Sheet
The core is made of premium cold-rolled silicon steel sheets, precisely stacked at 45° full-miter angles to ensure high efficiency.
Cable gland design
The transformer tank is fitted with cable glands for cable entry and exit; gland positions can be arranged on the left or right side.
Moisture-proof and salt-fog resistant
Coils and insulation components receive triple-proof (moisture, mold, salt fog) treatment for durable operation in humid, high-salt-fog marine environments
Standards and certifications
IEC 60076
Power transformer standards
IEC 61892
Standards for Marine and Offshore Electrical Equipment
ISO 8846
Non-Sparking Requirements for Marine Electrical Equipment
GB 1094
Power transformer specifications
GB/T 6451
Requirements for three-phase oil-immersed power transformers
GB/T 25499
Technical Requirements for Marine Transformers
Technical Advantages
R&D cloud platform
Integrates electromagnetic optimization design, parametric drawing, performance analysis, structural optimization, and automatic drawing output for transformers, enabling shared transformer design resources and search, modification, and version control of all kinds of data.
Simulation Analysis
Flow field, temperature field, electric field, leakage magnetic field, wave process, and short-circuit force. The R&D and design of every product series are verified through flow field and temperature field simulation analysis to determine the winding average temperature rise and hot-spot temperature, ensuring product performance.
Smart O&M platform
By collecting key data such as transformer temperature, current, voltage, vibration, and grid harmonics, it enables online power quality analysis and fault alarms, and can be installed on mobile phones.
