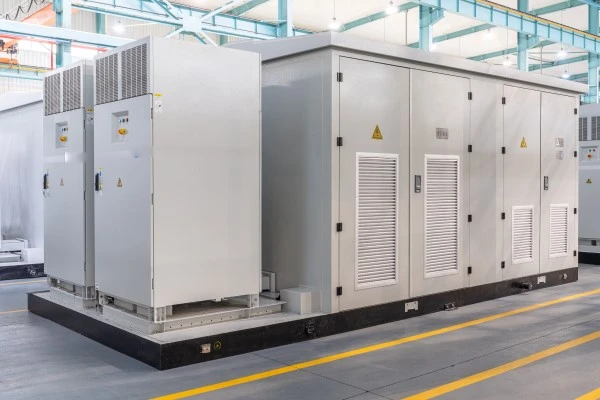

Megawatt-Level Flash Charging Substation
A high-voltage direct-connect integrated ultra-fast charging power system built for heavy trucks, mining trucks, ports and large charging hubs. High-voltage incoming line, phase-shifting transformer, AC/DC rectification, DC/DC power conversion, power distribution and charging terminal control are highly integrated to deliver efficient energy conversion from a 10kV grid to vehicle batteries, supporting megawatt-level output and flexible multi-terminal charging.
Product Introduction
Key Specifications
System Power
Up to 2.5MW
Input Voltage
AC 10kV
Input Frequency
50Hz
Output Voltage
DC 200–1000V
Application Scope
Heavy Truck Logistics
Megawatt-level fast charging for trunk-line logistics and logistics parks with high-frequency operation.
Mining Transport
Suited to mining trucks and other large-capacity battery vehicles requiring high-power, high-frequency charging.
Port Shore Power
High-power charging scenarios for port vehicles and large electric vessels.
Product Overview
- 10kV high-voltage direct connection: the high-voltage line enters the enclosure directly, reducing intermediate distribution equipment and making the system more compact.
- Multi-pulse phase shifting: a phase-shifting transformer improves the rectifier power take-off and reduces harmonic impact on the grid.
- SiC active rectification: actively corrects the current waveform while supporting reactive power compensation and power quality management.
- High-efficiency DC/DC: rapidly adjusts output according to vehicle battery voltage to improve DC conversion efficiency.
- Dynamic power distribution: 2 ultra-fast and 4 fast charging terminals flexibly share power, reducing idle charging guns.
- Integrated prefabrication: high voltage, transformation, power conversion and control are integrated to shorten on-site construction.
Product Features
Megawatt-Level Ultra-Fast Charging
System power reaches 2.5MW with 1500A liquid-cooled ultra-fast charging terminals, delivering high-power rapid charging for heavy trucks, mining trucks and large electric equipment.
Up to 96.5% System Efficiency
System efficiency reaches 96.5%, effectively reducing energy loss under high-power continuous charging conditions.
2 Ultra-Fast + 4 Fast Charging Terminals
Equipped with 2 × 1500A liquid-cooled ultra-fast terminals and 4 × 250A air-cooled fast terminals, with flexible power distribution based on vehicle and site load demand.
THDi ≤ 3%
Phase-shifting transformers, multi-pulse rectification and power electronics work together to limit THDi to within 3%, meeting power quality requirements for high-power charging equipment.
Fast Station Deployment
Prefabricated, integrated design means on-site work mainly involves high-voltage connection and charging terminal wiring, greatly reducing conventional distribution room construction and commissioning. Typical build time can be shortened to 7–14 days.
Reduced Footprint
High-voltage incoming line, transformer, power conversion and control systems are highly integrated, eliminating a separate conventional distribution room and reducing site equipment footprint by about 40%.
Standards
IEC 61000-3-6
Harmonic emission limits for medium- and high-voltage power systems.
GB/T 18487
Electric vehicle conductive charging system.
GB/T 27930
Communication protocol between off-board conductive chargers and battery management systems.
Technical Advantages
R&D Cloud Platform
Integrates electromagnetic optimisation design, parametric drafting, performance and structural analysis, and automatic drawing generation, enabling design resource sharing with data search, modification and version control.
Simulation Analysis
Flow field, temperature field, electric field, leakage magnetic field, wave process and short-circuit force. Every product series undergoes flow and temperature field simulation to determine average and hot-spot coil temperature rise and ensure performance.
Smart O&M Platform
Collects key data such as transformer temperature, current, voltage, vibration and grid harmonics to enable online power quality analysis and fault alarms, with mobile app access.
