New Debut of Smart Manufacturing, Precision Engineering Goes Global | CEEG HKSSPZ-13000/15 Series Transformer Voltage Regulation Special Transformer Sets Sail for France!

Driven by China's shift in growth gear and the rising international competitiveness of Chinese enterprises, along with the continued release of favorable policies such as the Belt and Road Initiative, "Chinese manufacturing" is riding the wind overseas, opening a new chapter of global expansion.

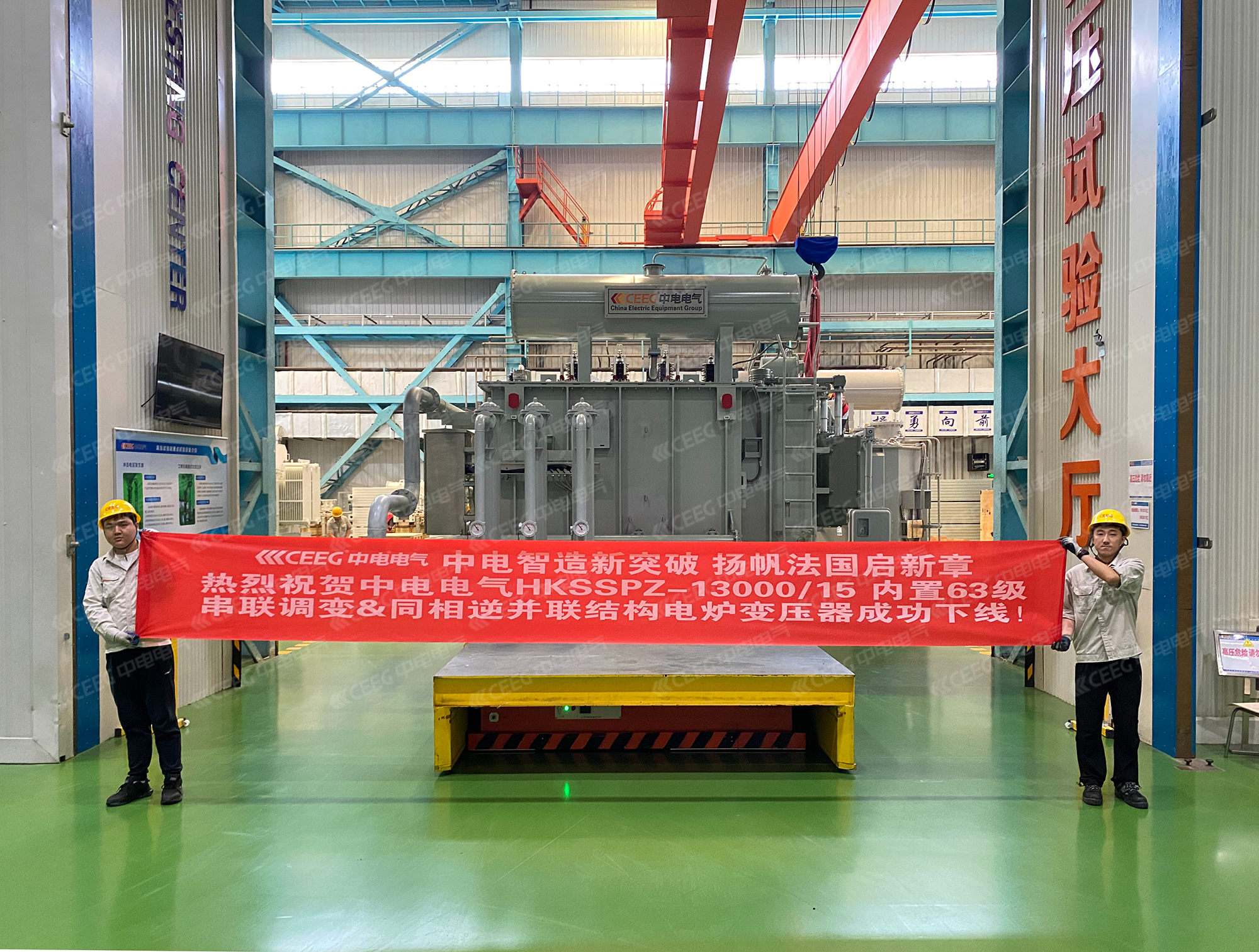

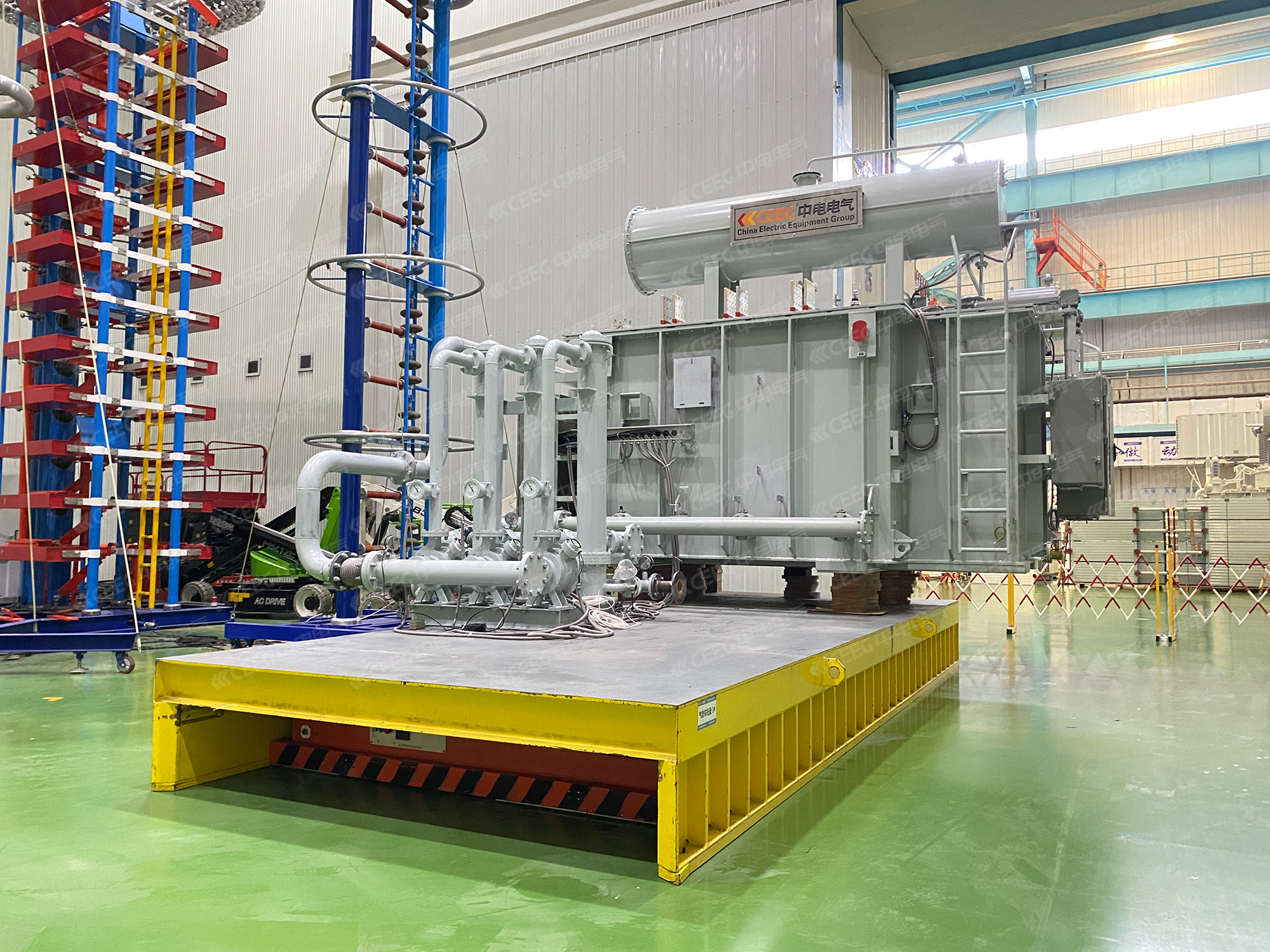

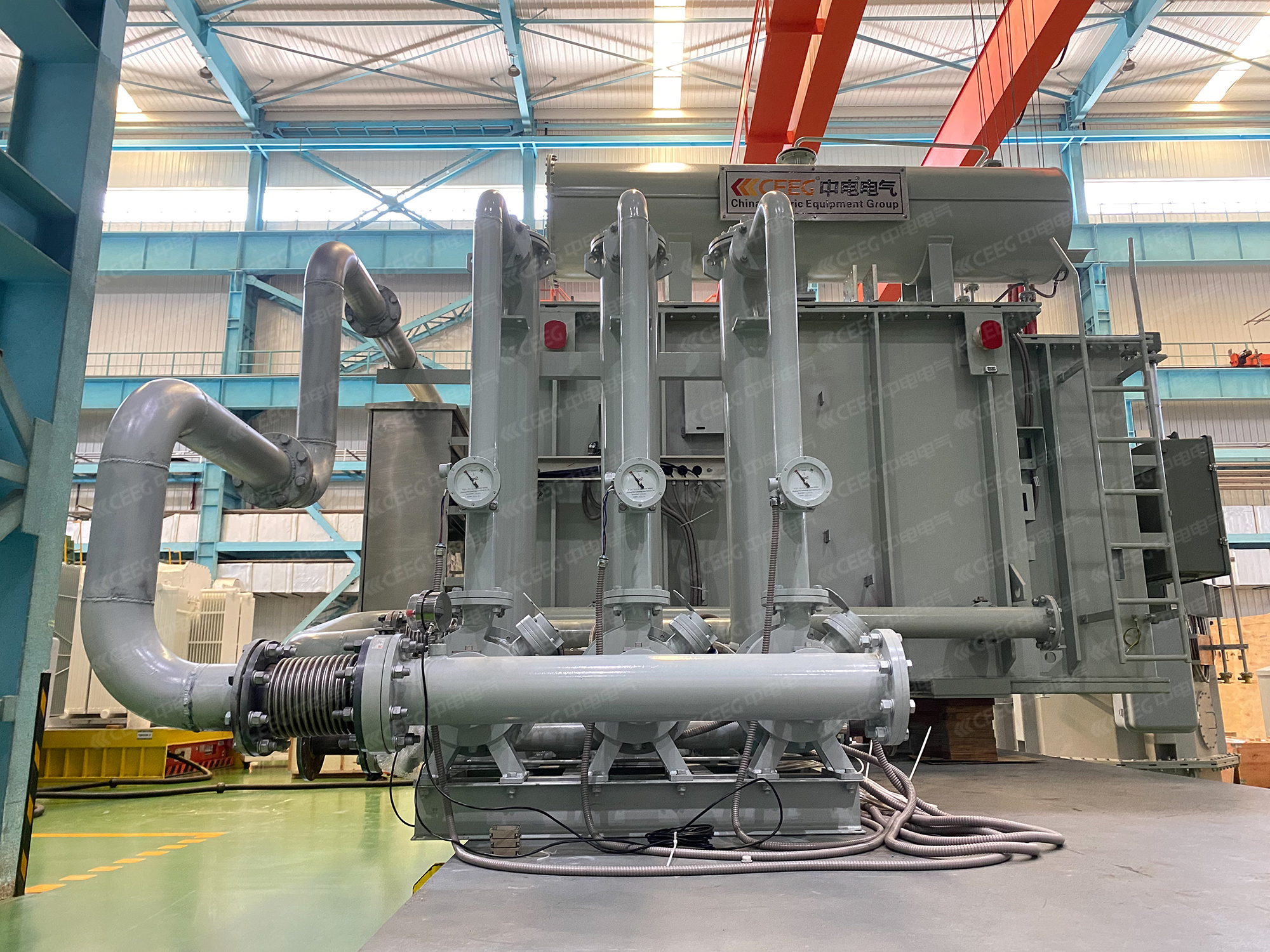

Recently, CEEG successfully exported its new HKSSPZ-13000/15 series-transformer voltage-regulating special transformer, crafted with smart manufacturing, to France. This is a key step for CEEG in expanding its footprint in the French market and a move toward building a healthy ecosystem for Chinese manufacturing "going global".

As industrial structure upgrading evolves, the going-global strategy has shifted from simple product exports toward technology exports, placing higher demands on corporate strength and product technical performance.

Leveraging a deep technical foundation and relentless pursuit of innovation, the CEEG team successfully developed and launched the HKSSPZ-13000/15 series-transformer voltage-regulating special transformer. The debut of this new product not only reflects the improvement of the company's manufacturing capabilities, but also shows the world CEEG's profound heritage and forward-looking vision in technological innovation.

Technological Innovation, High-Quality Development

1. Through the innovative design of combining fine and coarse regulating windings on the high-voltage side to supply the series transformer's excitation winding, constant flux in the main transformer and variable flux in the series transformer achieve stepped output on the low-voltage side with current up to 16000A and low-voltage voltage of 532~100V across 63 levels;

2. It adopts a dual-body series-transformer voltage-regulating structure, with the low-voltage coil in "figure-8" form, together with dedicated coil winding molds and lifting fixtures that perfectly solve the winding and assembly challenges;

3. Through thermal-field and leakage-flux-field simulation analysis and prototype test verification, the transformer's local overheating during 130% long-term overload operation and low-voltage three-phase current imbalance exceeding 40% were resolved, ensuring the transformer's long-term stable operation;

4. It adopts an in-phase reverse-parallel structure and special low-voltage delta closing measures, greatly reducing eddy current losses caused by the large low-voltage side currents;

5. It adopts the ETOS ED intelligent control cabinet from Germany's MR, with a built-in automatic voltage regulator and transformer management system, realizing remote digital monitoring, control and regulation of the transformer. This not only improves equipment operating efficiency but also reduces maintenance costs, delivering higher economic benefits to users.

Quality Service, Achieving Excellence

1. Over 30 years of professional experience enable customization of various special products to customer requirements, with personalized service throughout;

2. The Binjiang, Yangzhong and Jurong plants — 3 major production bases — make CEEG a modern enterprise integrating R&D, manufacturing and sales;

3. 150+ countries and regions; more than 20,000 customers supplied with over 400,000 transformers, widely used in railways, metros, the three major telecom operators, defense, coal, steel and other key industries;

4. A nationwide unified customer service hotline serves as the communication and customer response platform;

5. Over 20 years of rich export experience, familiar with international trade procedures, ensuring efficient and secure cargo delivery;

6. A global service team provides customers with full life-cycle product operation and maintenance, for complete peace of mind.

"Chinese manufacturing" presses ahead overseas by adapting to change and overcoming difficulties, consolidating its first-mover advantage through high-end, intelligent and green transformation. CEEG will continue to explore new markets, new models and new opportunities for "Chinese manufacturing" going global, driving the industry's high-quality development deeper and further.
