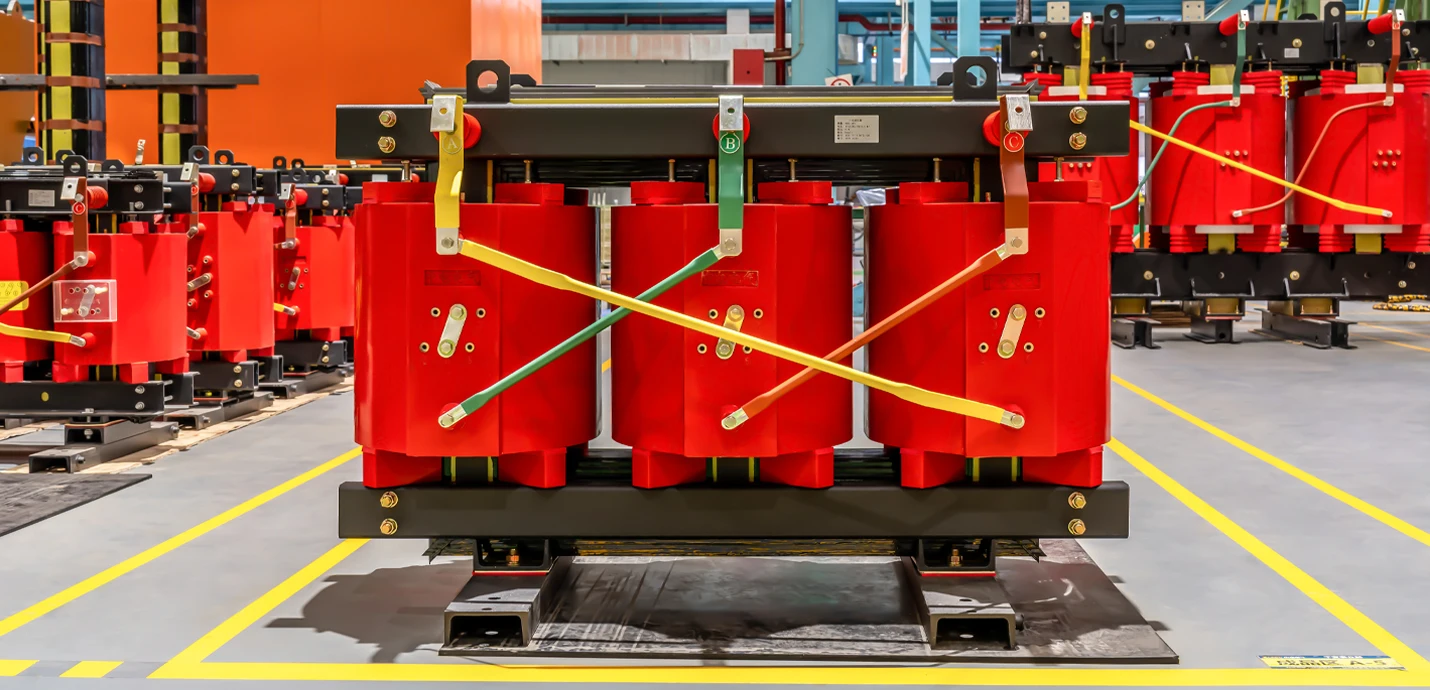

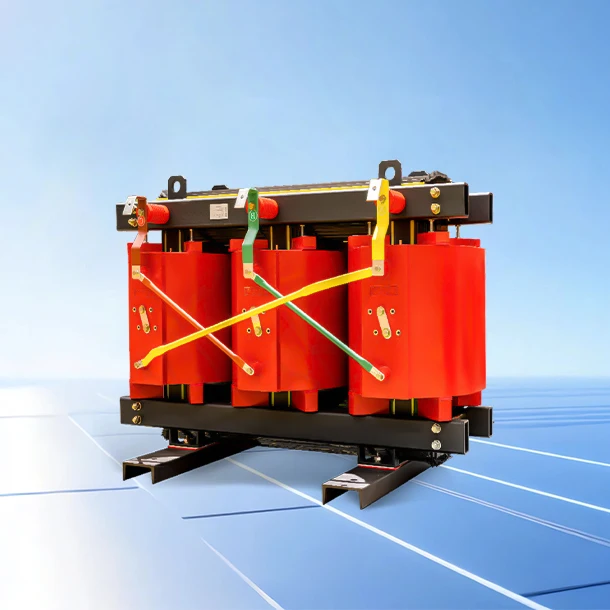

SCB Dry Type Power Transformer

Medium to Low Voltage Transformer
high insulation capacity, low noise, strong overload capacity

Inquire Now

100kva-63000kva

Capacity

6kv-35kv

High-Voltage Range

Three

Phases

50hz/60hz

Frequency

Feature 1

Engineered with premium epoxy cast resin technology to provide exceptional moisture resistance and reliable performance in demanding environments.

Feature 3

Optimized for high energy efficiency, delivering ultra-low no-load losses, minimal partial discharge, and significantly reduced operational noise.

Feature 5

Constructed for ultimate convenience, offering a compact, space-saving footprint alongside a completely maintenance-free operational experience.

Feature 2

Designed for absolute safety, featuring flame-retardant, self-extinguishing, and explosion-proof properties that eliminate the fire hazards of oil-filled types.

Feature 4

Built with outstanding mechanical strength to effectively withstand severe thermal shocks and extreme short-circuit stresses for a prolonged lifespan.

Feature 6

Certified to meet rigorous international quality standards, making it the ideal power solution for critical infrastructure, data centers, and industrial plants.

Class F Insulation SCB10-315~2500/10
Rated High Voltage：10（10.5,11,6.6,6.3,6）kV
Rated Low Voltage：0.4kV
Connection Group: Dyn11or Yyn0
Insulation Level: Ll 75 AC 35 / Ll AC 3; Tap Range：±2*2.5%
Model	UK%	P0(W)	Pk（120℃）（W)	I0%	LPA(AN)dB	Gauge m x n (mm)
SCB10-315/10	4	880	3470	1	55	660 x 660
SCB10-400/10	4	980	3990	1	55	660 x 660
SCB10-500/10	4	1160	4880	1	57	660 x 660
SCB10-630/10	4	1340	5880	0.85	57	820 x 820
SCB10-630/10	6	1300	5960	0.85	57	820 x 820
SCB10-800/10	6	1520	6960	0.85	58	820 x 820
SCB10-1000/10	6	1770	8130	0.85	58	820 x 820
SCB10-1250/10	6	2090	9690	0.85	60	820 x 820
SCB10-1600/10	6	2450	11700	0.85	60	820 x 820
SCB10-2000/10	6	3050	14400	0.7	62	820 x 820
SCB10-2500/10	6	3600	17100	0.7	62	820 x 820

Inquire Now

CEEG will offer custom quotes and powerful solutions to meet your needs.
Send us your details and we'll get back to you as soon as possible.
