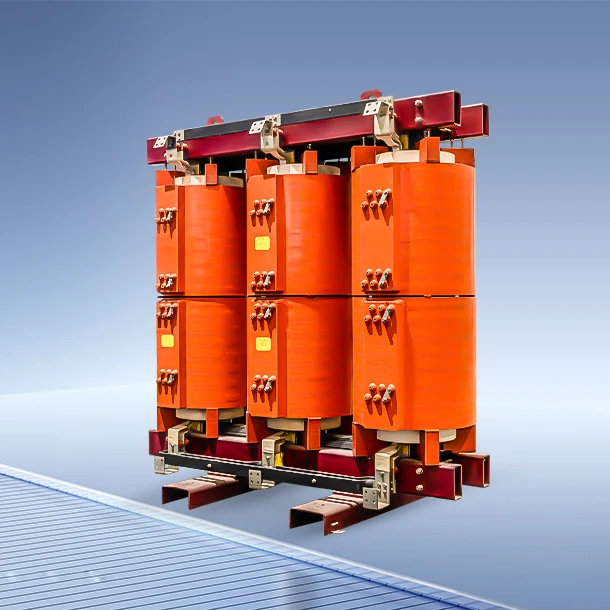

CEEG Dry Type Rectifier Transformer

DRY-TYPE Air-Insulated Rectifier Transformer
Custom Series Traction (Rectifier) Transformers

Inquire Now
100kva-63000kva
Capacity
6kv-35kv
High-Voltage Range
Three
Phases
50hz/60hz
Frequency
Excellent Moisture-Proof Performance
Designed for humid and high-moisture environments, both primary and secondary windings are fully encapsulated with epoxy resin. This structure effectively prevents water penetration, protects winding materials from humidity, and ensures long-term stable operation.
Advanced Temperature Monitoring and Protection
Equipped with embedded PT thermistors, the transformer provides accurate temperature prediction and control. It supports over-temperature alarm and trip functions, audible and visual warnings, automatic fan start, fan overload protection, and computer interface connectivity for intelligent operation management.
High Insulation Reliability
Built with Class F insulation materials and controlled partial discharge levels not exceeding 5 pC, the transformer offers outstanding insulation performance. Advanced electric field simulation, impulse testing, and insulation verification ensure reliable operation under demanding working conditions.
Low Harmonic Distortion with 24-Pulse Rectification
The transformer adopts advanced 24-pulse rectification technology, with optimized key technical parameters to achieve excellent electrical balance. This helps reduce harmonic distortion and effectively suppress non-characteristic harmonics, improving power quality.
Low Loss and Low Noise Design
The transformer core uses a 45° fully mitered step-lap joint structure and is coated with special resin. This design effectively reduces no-load loss, no-load current, and core noise, delivering higher efficiency and quieter operation.
Optimized Thermal and Electromagnetic Performance
Through precise leakage magnetic field calculation, magnetic shielding optimization, stray loss reduction, and proprietary coil temperature field analysis, the transformer achieves improved dynamic stability, lower hotspot temperature rise, and enhanced long-term service life.
