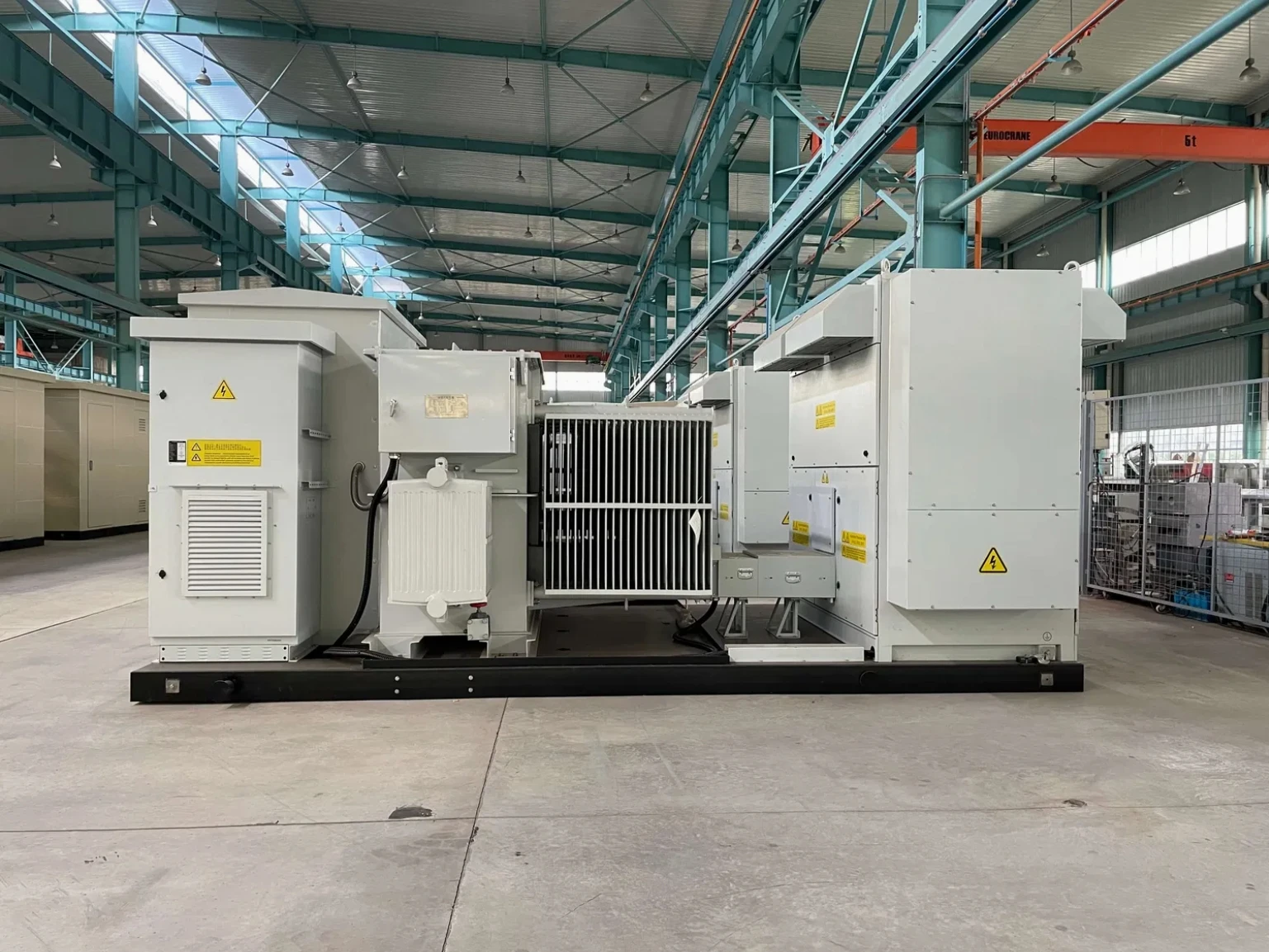

Energy Station With Electric Oil Immersed Box Transformer

Advanced Converter Technology And Oil/Dry Transformer

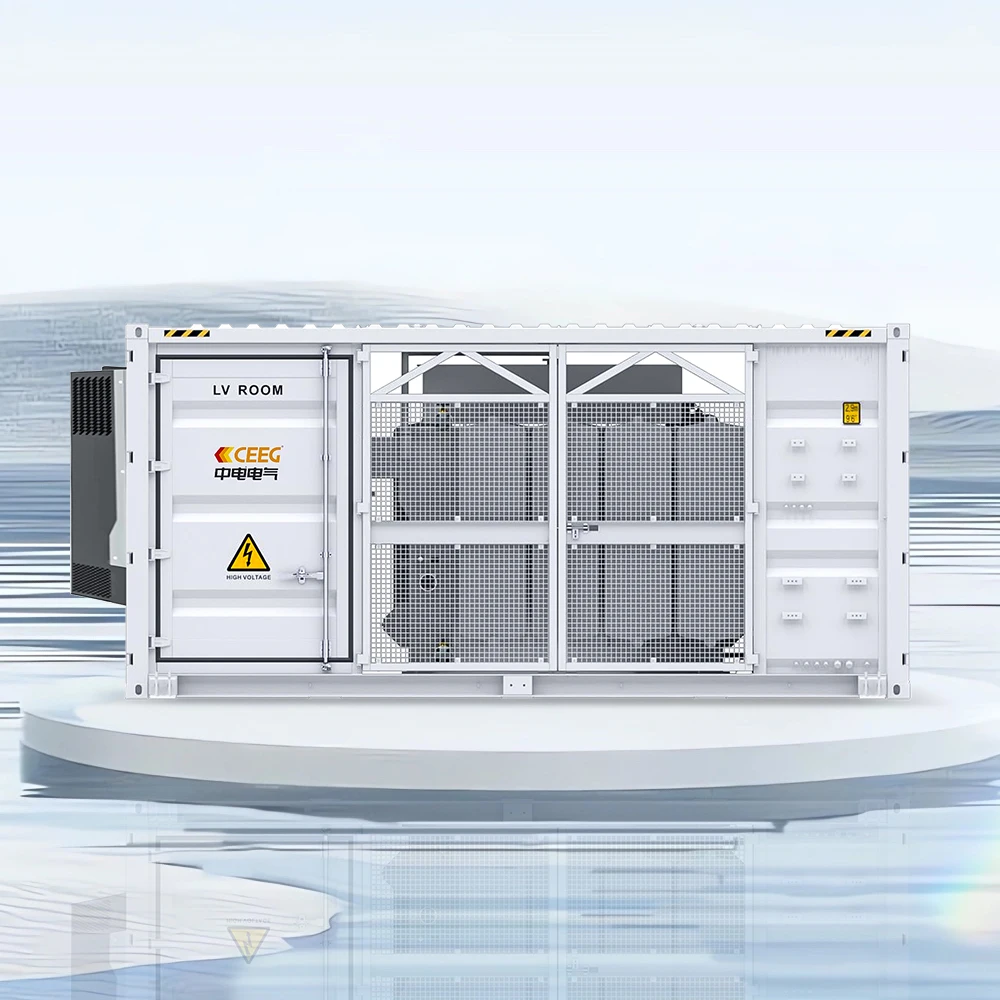

PCS Turnkey Station With MV Transformer Integrated

Downloads Inquire Now
10MW
Max Capacity
6kV~37kV
High-Voltage Range
Oil/Dry
Types Of Transformers
IP54
IP Rating
Benefits
● Easy to install: an integrated design of photovoltaic inverter, transformer, and switchgear, saving the installation time ● Higher adaptability: can be installed in various environments ● High-quality thermal insulation crafts . Excellent air ventilation design ● Safety operation: the cast epoxy resin dry-type transformer is non-inflammable because of its self-extinguishing ● Cost effective: the investment will be reduced by 15%-20% ● Flexible solutions: the product can be designed for customer needs
Applications
It can be widely used in industries, utilities, infrastructure, and many fields that need power transmission and distribution, etc.
Features
● Strong corrosion resistance: the enclosures are made of weathering steel, which has increased resistance to atmospheric corrosion. ● Structural optimization: reduced some connection cable and two low-voltage switchgears.
Environmental conditions
Installation altitude: ≤1,000m Ambient temperature: -25 C~+40 °C Daily mean relative humidity≤95%, monthly mean relative humidity≤90% Installed in a site without fire, explosion, chemical corrosion, serious pollution, and violent vibration For some special conditions, please contact and negotiate with us

Key Indicators

Technical Parameter Values

AC Side Parameters

AC Connection Mode

3-phase 3-wire (including step-up transformer)

Rated Grid Frequency

50Hz

Rated Power

≥5000kW

Total Current Harmonic Distortion

<3% (at rated power)

Short-term Overload Capacity

/

Power Factor

>0.99 (at 20% load)

Rated Grid Voltage

37kV

Adjustable Power Factor Range

1 (leading) - 1 (lagging)

Voltage Operating Range

37kV±10%

Protection

Transformer Protection

Yes

Energy Storage PCS Protection

Yes

System

Protection Level

IP54

Cooling Method

Forced air cooling

Noise Level

<77dB (at 1m distance)

Relative Humidity

0 - 100%, non-condensing

Operating Ambient Temperature

－25℃～+60℃

Communication Interfaces

Ethernet, RS485, CAN

Storage Ambient Temperature

－40℃～+70℃

Power Supply for Control System

Self-powered mode

Standards Compliance:   IEC 62271-202, EN 50588-1, IEC 60076, IEC 62271-200, IEC 61439-1
