PCS Turnkey Station with Dry PowerTransformer

PCS Turnkey Station With MV Transformer Integrated
Prefabricated Solar Substation with Boosting Transformer and Inverter

Downloads Inquire Now
10MW
Max Capacity
6kV~37kV
High-Voltage Range
Dry/Oil
Types Of Transformers
IP54
IP Rating
Integrated Design&Customization
Combining a boost converter and PCS into a single compact unit,our system simplifies installation, reduces footprint, and enhances overall efficiency.
lower the lifetime cost (LCOE) of EPCs and developers' energy storage assets
Our architecture eliminates cluster imbalance, boosting system efficiency by up to 20% and enabling maintenance without full shutdown.

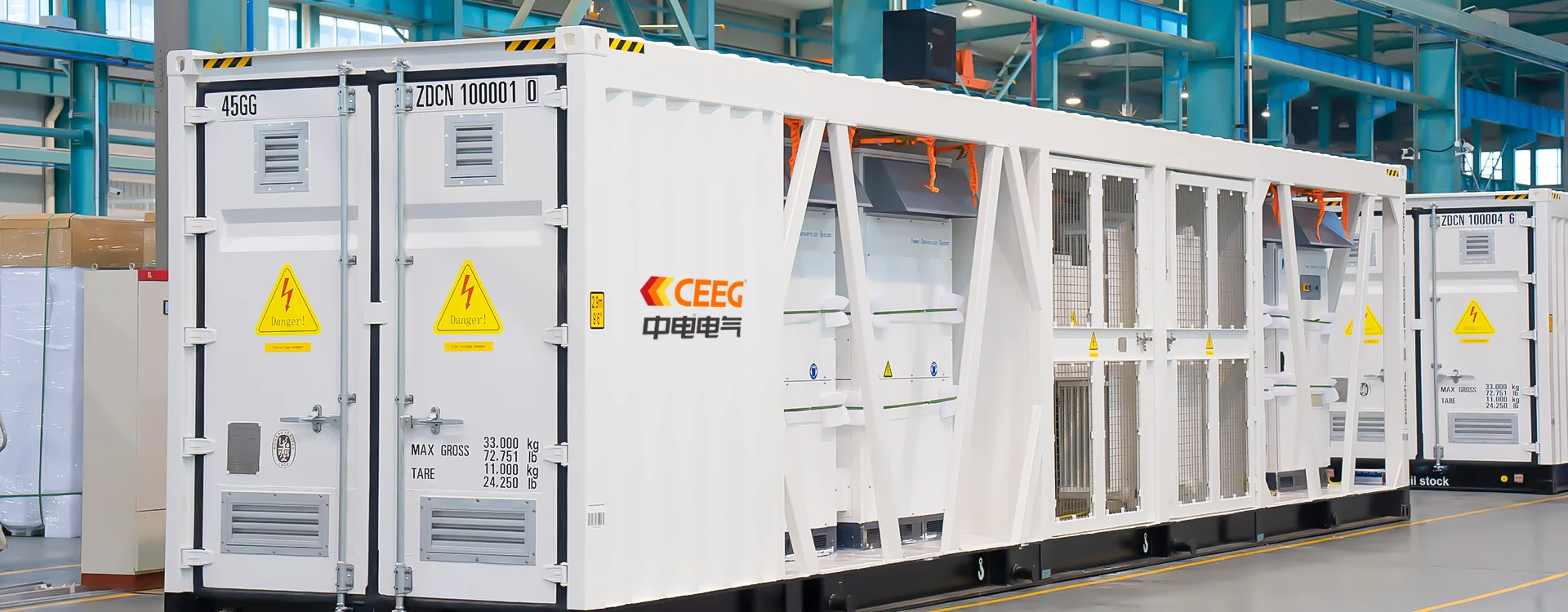

All-in-One Energy Storage and Boost Converter System
It supports seamless integration with renewable energy sources, energy storage systems, and grid applications.
supplying customized solutions to international EPCs and other customers.
As an ISO & UL-certified manufacturer with over 35 years in the power industry, CEEG's solutions are trusted by partners globally.

Key Indicators

Technical Parameter Values

AC Side Parameters

AC Connection Mode

3-phase 3-wire (including step-up transformer)

Rated Grid Frequency

50Hz

Rated Power

≥5000kW

Total Current Harmonic Distortion

<3% (at rated power)

Short-term Overload Capacity

/

Power Factor

>0.99 (at 20% load)

Rated Grid Voltage

37kV

Adjustable Power Factor Range

1 (leading) - 1 (lagging)

Voltage Operating Range

37kV±10%

Protection

Transformer Protection

Yes

Energy Storage PCS Protection

Yes

System

Protection Level

IP54

Cooling Method

Forced air cooling

Noise Level

<77dB (at 1m distance)

Relative Humidity

0 - 100%, non-condensing

Operating Ambient Temperature

－25℃～+60℃

Communication Interfaces

Ethernet, RS485, CAN

Storage Ambient Temperature

－40℃～+70℃

Power Supply for Control System

Self-powered mode

Standards Compliance:   IEC 62271-202, EN 50588-1, IEC 60076, IEC 62271-200, IEC 61439-1
