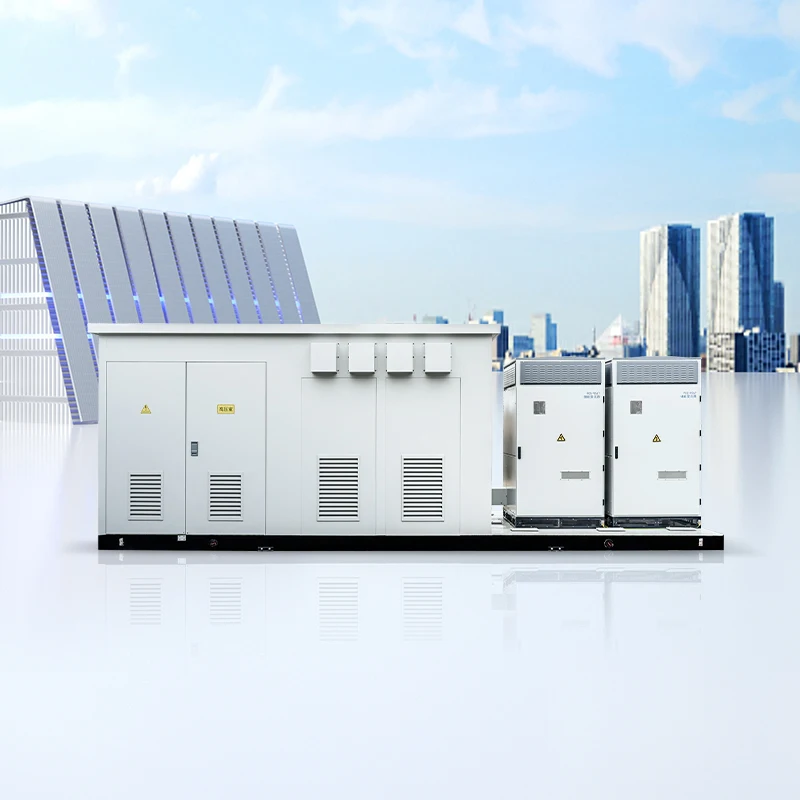

Prefabricated Solar Substation with Boosting Transformer and Inverter

Grid-Connected Photovoltaic Inverters
MV Turnkey solution for Utility PV plant

Downloads Inquire Now
10MW
Max Capacity
6kV~37kV
High-Voltage Range
Dry/Oil
Types Of Transformers
IP54
IP Rating
Benefits
● Advanced enclosures: stable structure, dust-proof and animal-proof, easy maintenance. ● Safety and reliable operation
Applications
It can be widely used in industries, utilities, infrastructure, and many fields that need power transmission and distribution, etc,
Features
● Optional enclosures: tile board, aluminum alloy, steel plate, or stainless steel, etc. Complete anti-misoperation interlock system, the high-voltage room adopts load switches or vacuum circuit breakers. ● Optional automatic reactive power compensation assembly: dynamic or static hybrid compensation for options. ● Excellent thermal insulation design: the top of the switching station has double-layers, which are filled with plastic foam. Excellent air ventilation system: normally use natural draught ventilation and can be equipped with forced ventilation systems. ● The substation can be transported by ocean shipping

Key Indicators

Technical Parameter Values

AC Side Parameters

AC Connection Mode

3-phase 3-wire (including step-up transformer)

Rated Grid Frequency

50Hz

Rated Power

≥5000kW

Total Current Harmonic Distortion

<3% (at rated power)

Short-term Overload Capacity

/

Power Factor

>0.99 (at 20% load)

Rated Grid Voltage

37kV

Adjustable Power Factor Range

1 (leading) - 1 (lagging)

Voltage Operating Range

37kV±10%

Protection

Transformer Protection

Yes

Energy Storage PCS Protection

Yes

System

Protection Level

IP54

Cooling Method

Forced air cooling

Noise Level

<77dB (at 1m distance)

Relative Humidity

0 - 100%, non-condensing

Operating Ambient Temperature

－25℃～+60℃

Communication Interfaces

Ethernet, RS485, CAN

Storage Ambient Temperature

－40℃～+70℃

Power Supply for Control System

Self-powered mode

Standards Compliance:   IEC 62271-202, EN 50588-1, IEC 60076, IEC 62271-200, IEC 61439-1
